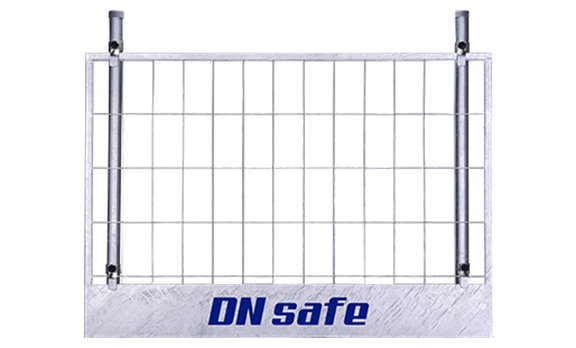

Safety Panel With Frame Galvanised
TECHNICAL DETAILS
| Height | 112 cm | ||||||
| Width | 130 cm (Type1) |
260 cm (Type 2) |
|||||
| Profile Frame | 20x20x1,5 mm and 20x30x1,5 mm | ||||||
| Diameter Of Horizontal Wire | ø 7 mm and ø 6 mm | ||||||
| Diameter Of Vertical Wire | ø 5 mm | ||||||
| Thickness Of Metal Sheet | 0,5 mm | ||||||
| Diameter Of Post | ø 48 mm | ||||||
| Thickness Of Post | 2,5 mm | ||||||
| Accessories | Modular Stays |
Modular Hook |
Expansion Bolt |
||||
| Panel Coating | 120 µ | ||||||
| Colour | RAL 1018 Yellow | ||||||
| Coating of post and accessory | Electrogalvanized | ||||||
Panel Technical Details
| Weight | 15,5 kg | ||||||
| Height | 110 cm | ||||||
| Lenght | 260 cm | ||||||
| Coating | Electrostatic Powder Painting | ||||||
| Standard | EN 13374 | ||||||
Post Technical Details
| Weight | 3950 g | ||||||
| Lenght | 48 x 2.5 mm | ||||||
| Height | 120 cm | ||||||
| Coating | Electrogalvanized | ||||||
| Standard | EN 13374 AB | ||||||
Post Technical Details
| Weight | 3950 g | ||||||
| Lenght | 48 x 2.5 mm | ||||||
| Height | 120 cm | ||||||
| Coating | Electrogalvanized | ||||||
| Standard | EN 13374 AB | ||||||
DNSAFE Technical Detail
| Production Code | DN - 1200 - DB | ||||||
| Weight | 3950 g | ||||||
| Diameter | 48 x 2.5 mm | ||||||
| Height | 120 cm | ||||||
| Coating | Electrogalvanized | ||||||
| Standard | EN 13374 AB | ||||||
| Units per Package | |||||||
