Double Wire Mesh
DESCRIPTION
Production Standard: TS EN 10223-4, TS EN 10223-7
TECHNICAL DETAILS
| Horizontal Wire Thickness |
ø 5,00 mm | ø 6,00 mm | ||||
| Vertical Wire Thickness | ø 6,00 mm | ø 8,00 mm | ||||
| Mesh Size | 50x200 mm | |||||
| Height | 83 cm | 103 cm | 123 cm | 153 cm | 203 cm | 243 cm |
| Number Of Folds | 200 cm - 240 cm - 250 cm | |||||

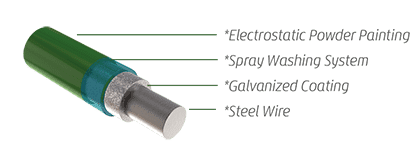

| Coating | Hot Dip Galvanized, Electrostatic Powder Painting on Hot Dip Galvanized Wire or Pvc Coating On Hot Dip Galvanized Wire | |||||
| Color | Standard Color : Ral 6005 Green (Color Options Are Available) | |||||
| Coating Ratio | Minimum 80 gr /m2 | |||||
| Painting Ratio | Minimum 120 µ (Micron) | |||||
| Production Standard | TS EN 10223-4 , TS EN 10223-7 | |||||
Why Panel Fence?
- Security
- Aesthetics
- Different Colors
- Durability
- Practical Execution and Ease of Repair
RAL Catalog Colors Are Available
Execution Areas;
- Sport Areas
- Private Areas
- Gardens
- Various Industrial Areas
- Steel Construction Applications
